St Thomas Bridge

Listed Bridge Repair Works

Project Value

£190K

Client Name

Kier for the Canal and River trust

Project Type

Waterway Engineering

St Thomas Bridge

CPC Civils was contracted to undertake the construction work needed to strengthen the structure of the historic Grade II listed bridge.

Listed Bridge Repair Works

St Thomas Bridge – Construction details:

  • Close bridge and traffic management of the road network
  • Replace arch brickwork via intrados side of the arch
  • Temporary diversion of Severn Trent water main
  • Dive survey of canal walls beneath bridge
  • Excavate Bridge deck and infill to the abutment level exposing the extrados surface of the bridge arch
  • Construction of reinforced concrete strengthening saddle
  • Construct service accommodation for main water mains within bridge saddle
  • Re connect water mains
  • Construct new alignment kerb line

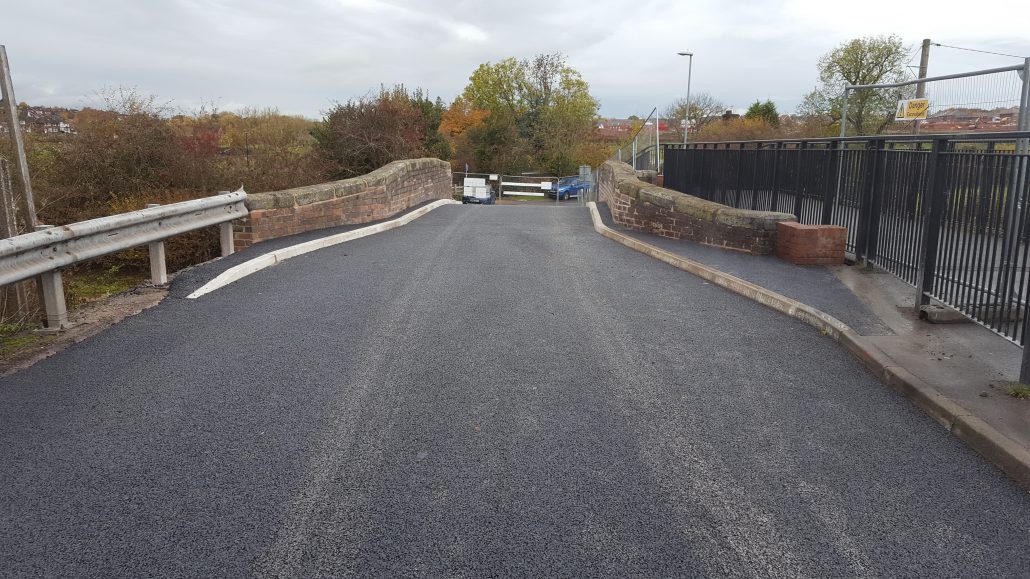

  • Resurface bridge deck
  • Re-open bridge

St Thomas Bridge – Project Objectives:

St Thomas Bridge is located in Stafford. It spans North to South carrying Baswich Lane over the Staffordshire and Worcestershire Canal.

The bridge is a Grade II listed structure and has a weight limit of 7.5 tonnes.

Listed Bridge Repair Works

Due to the deteriorating condition of the bridge, its assessed load capacity continues to reduce and was already below the signed limit of 7.5 tonne.

Awards

Institution of Structural Engineers

Highway or Railway Bridge Award Winner 2018
